3 Layer · ABA

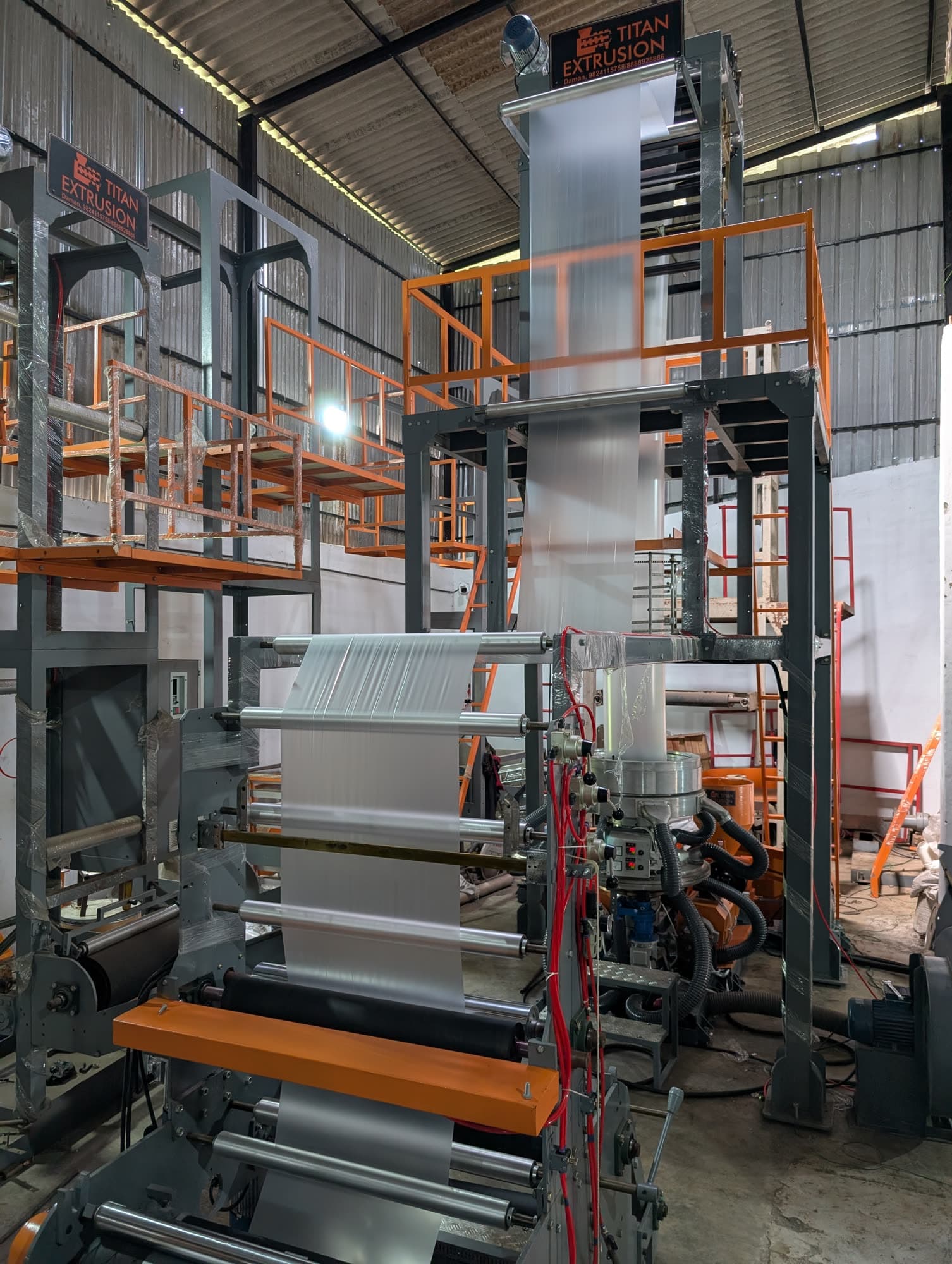

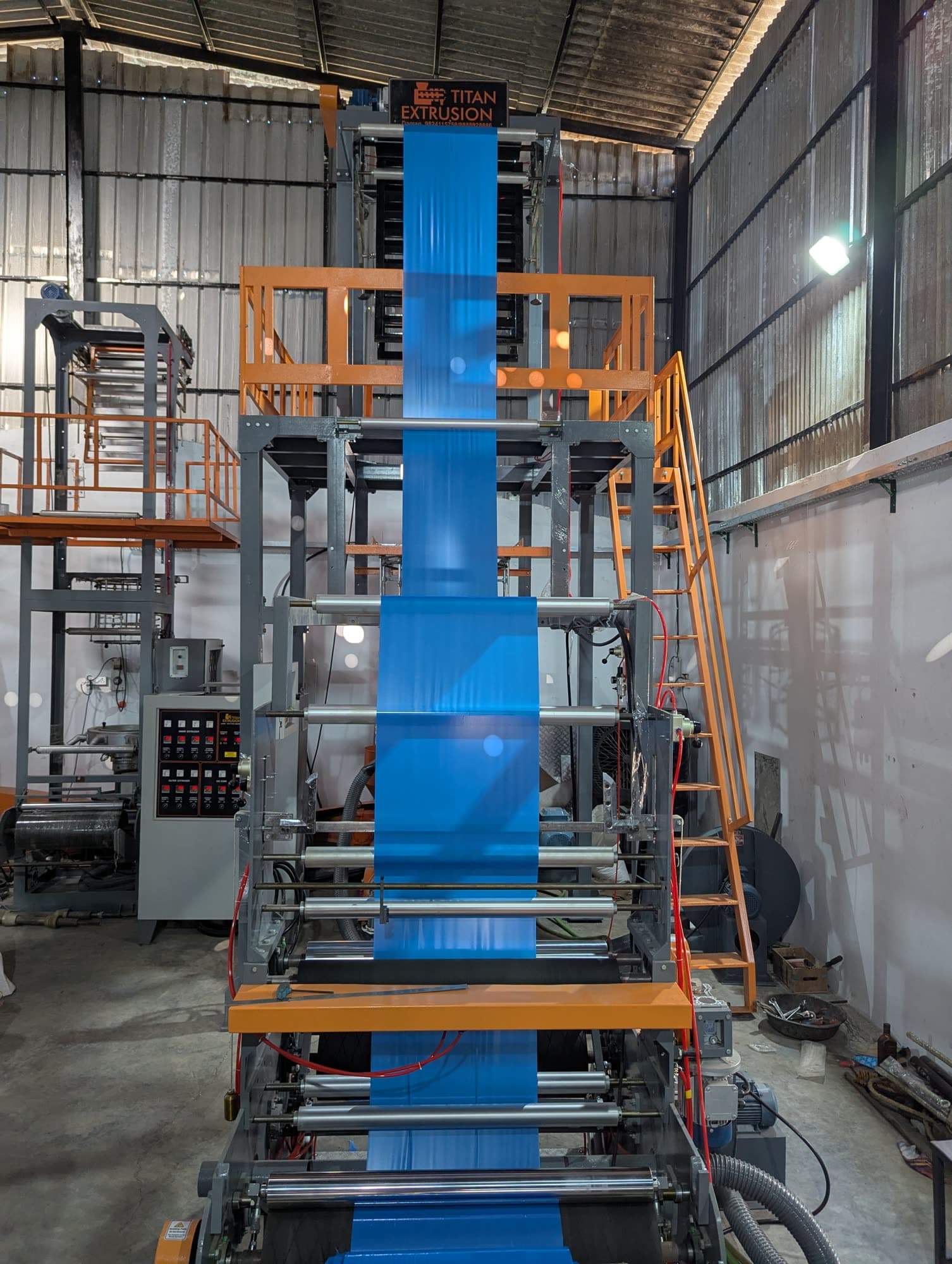

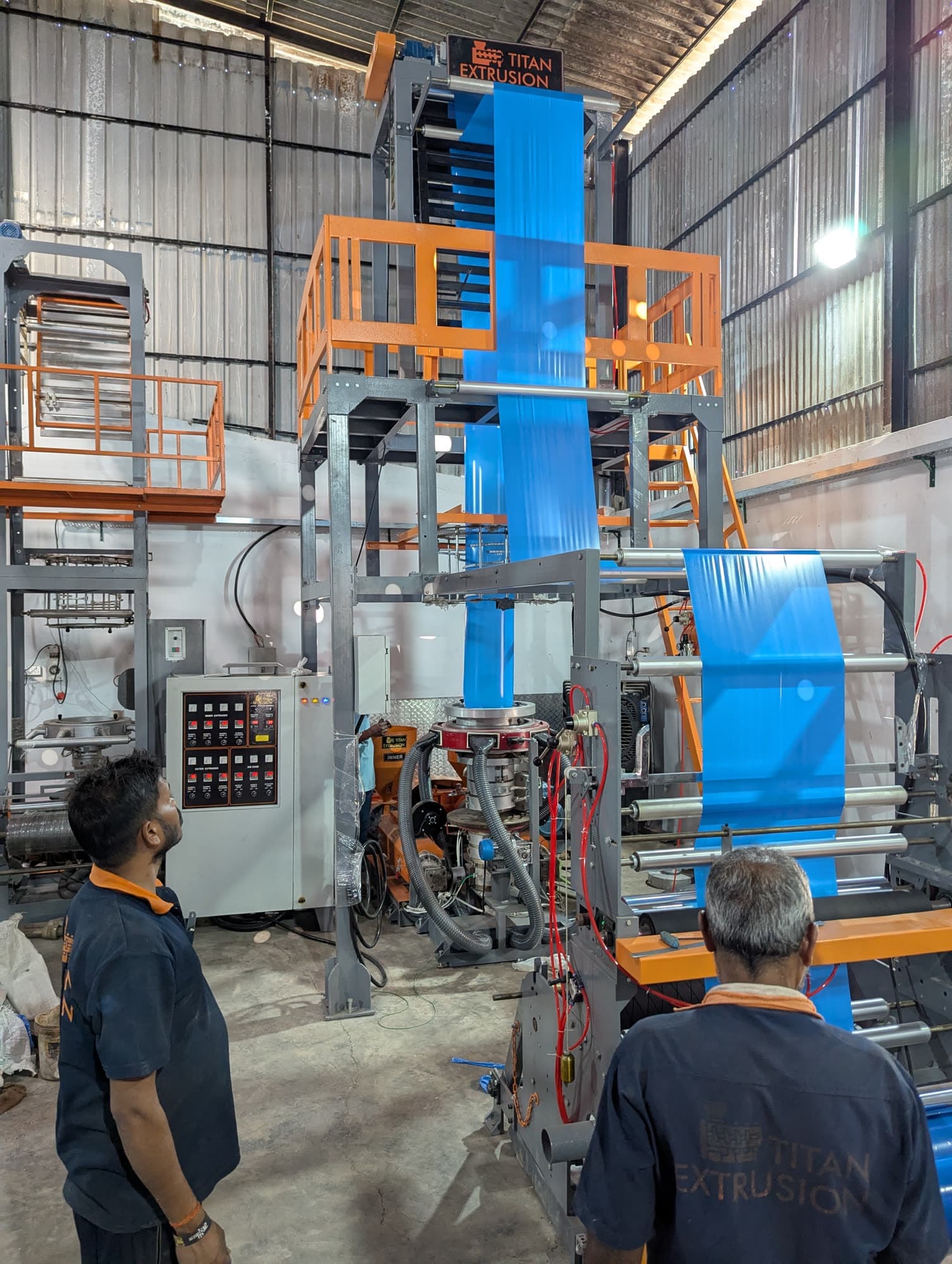

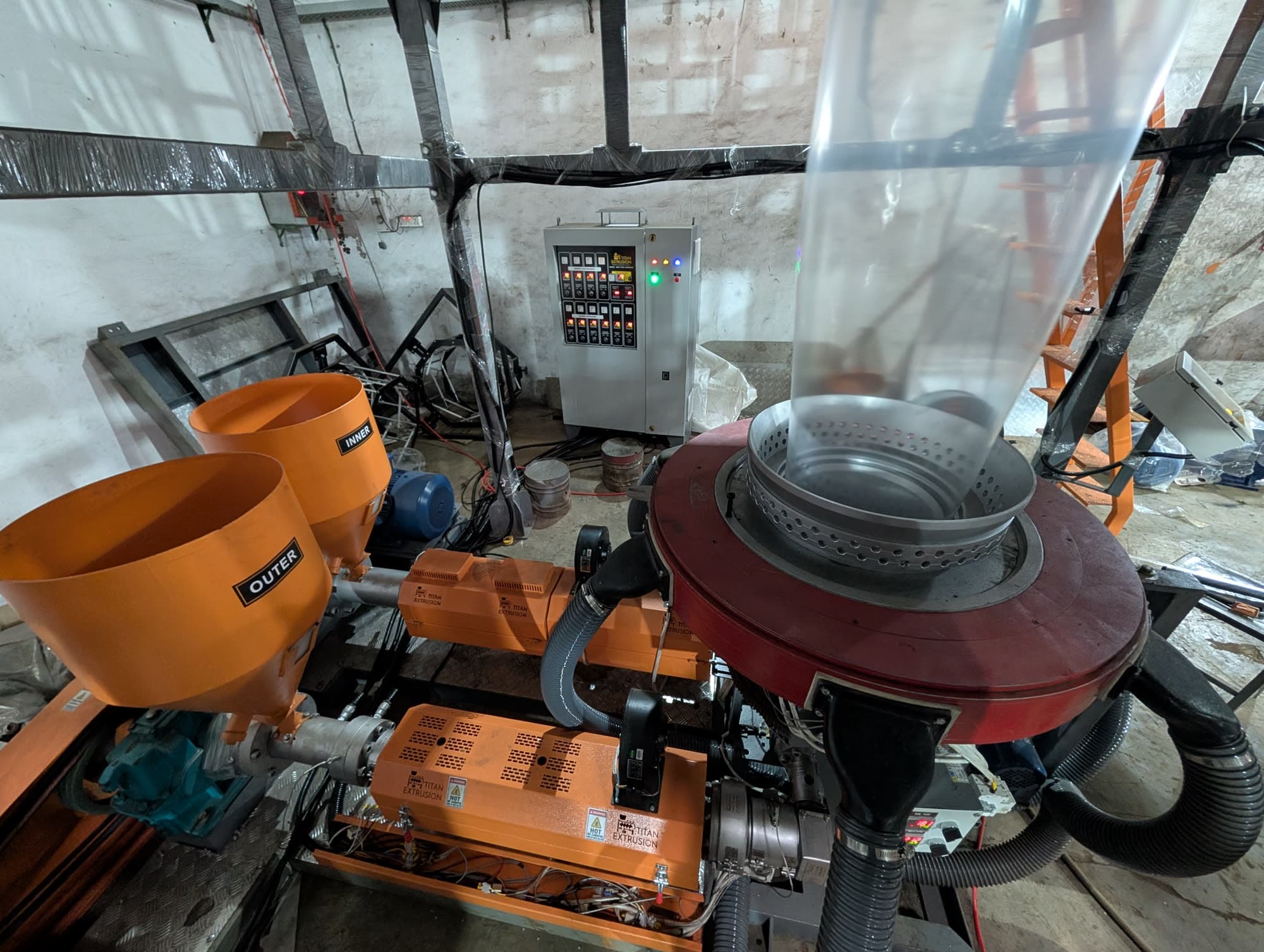

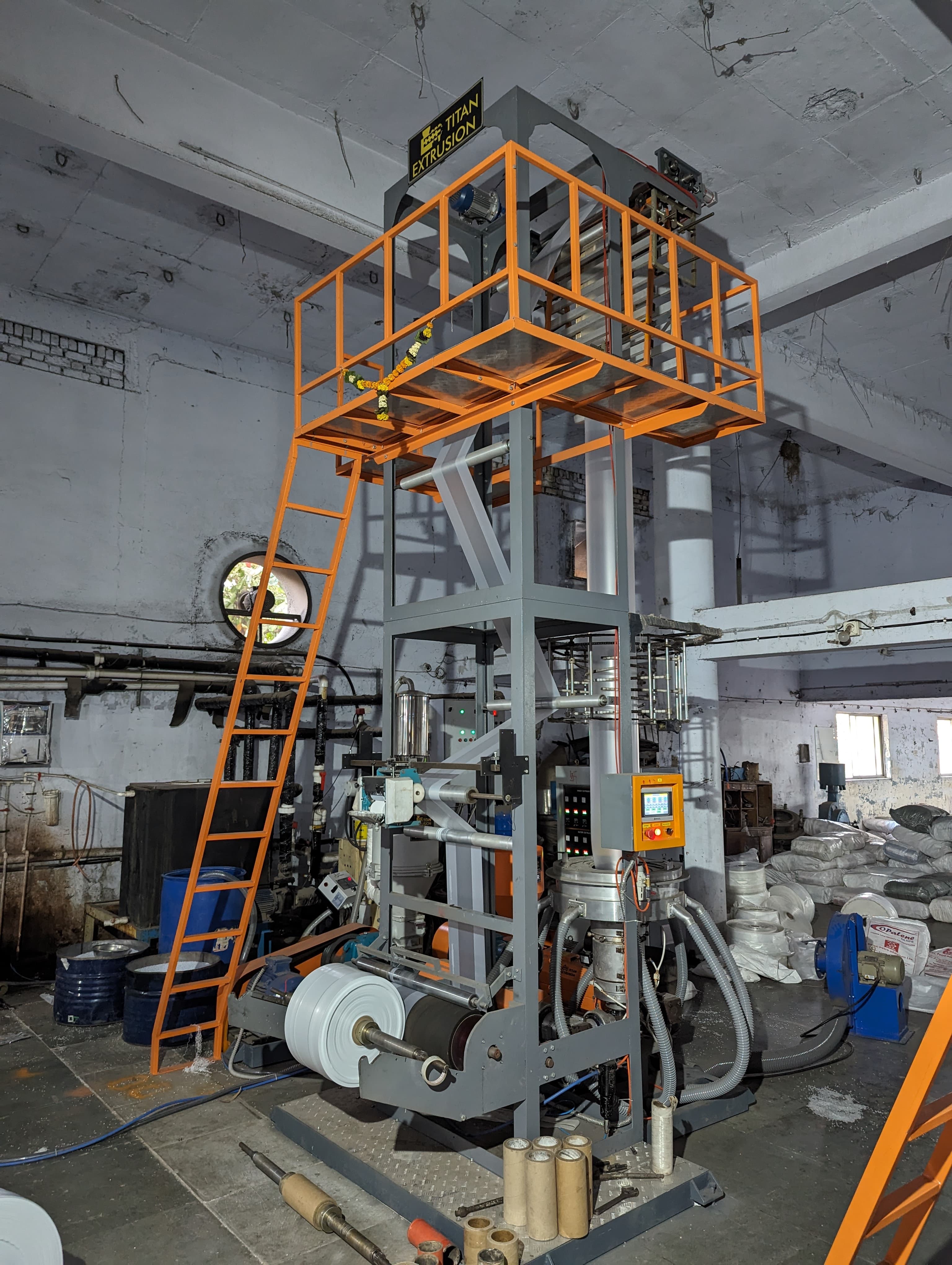

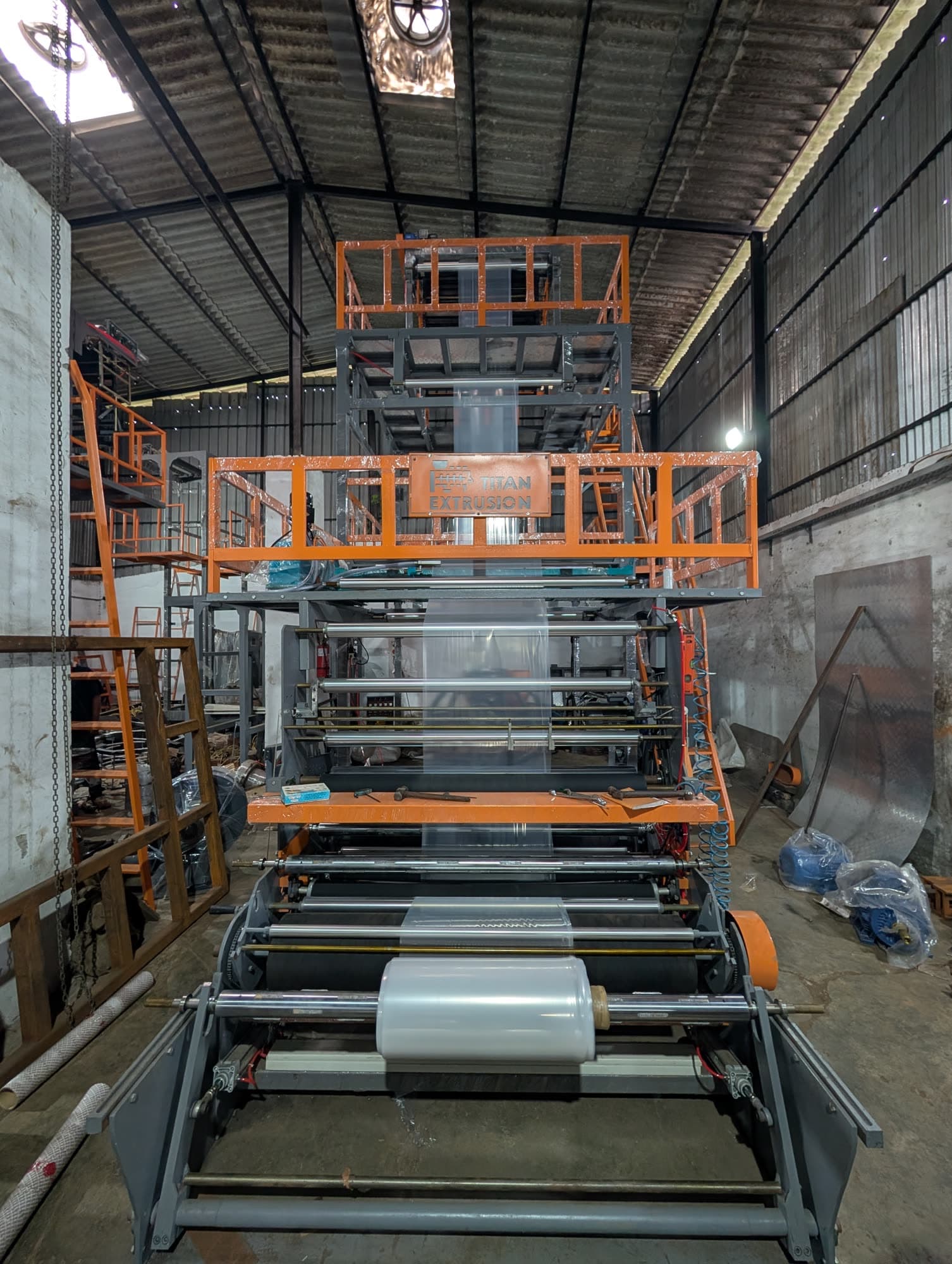

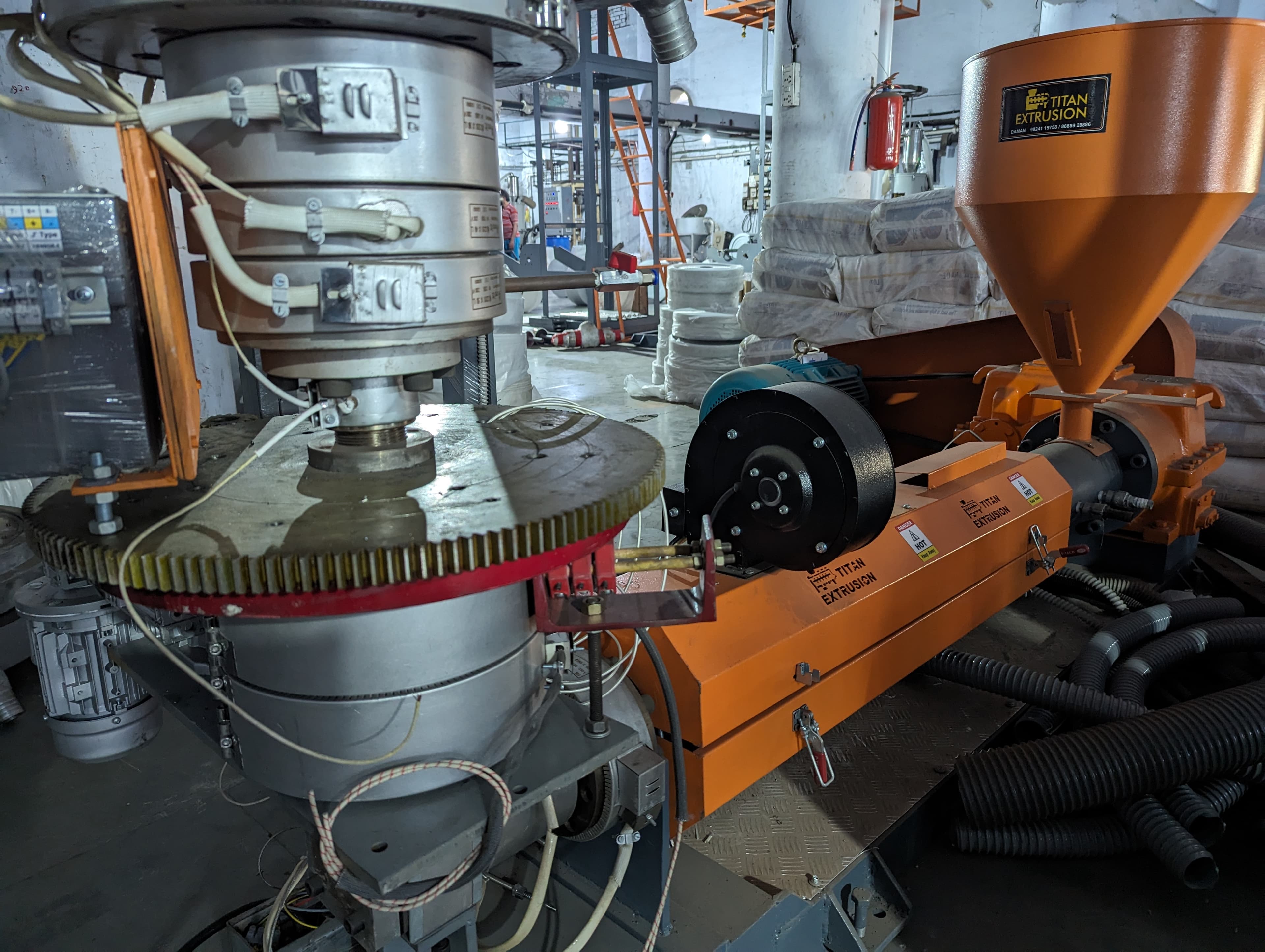

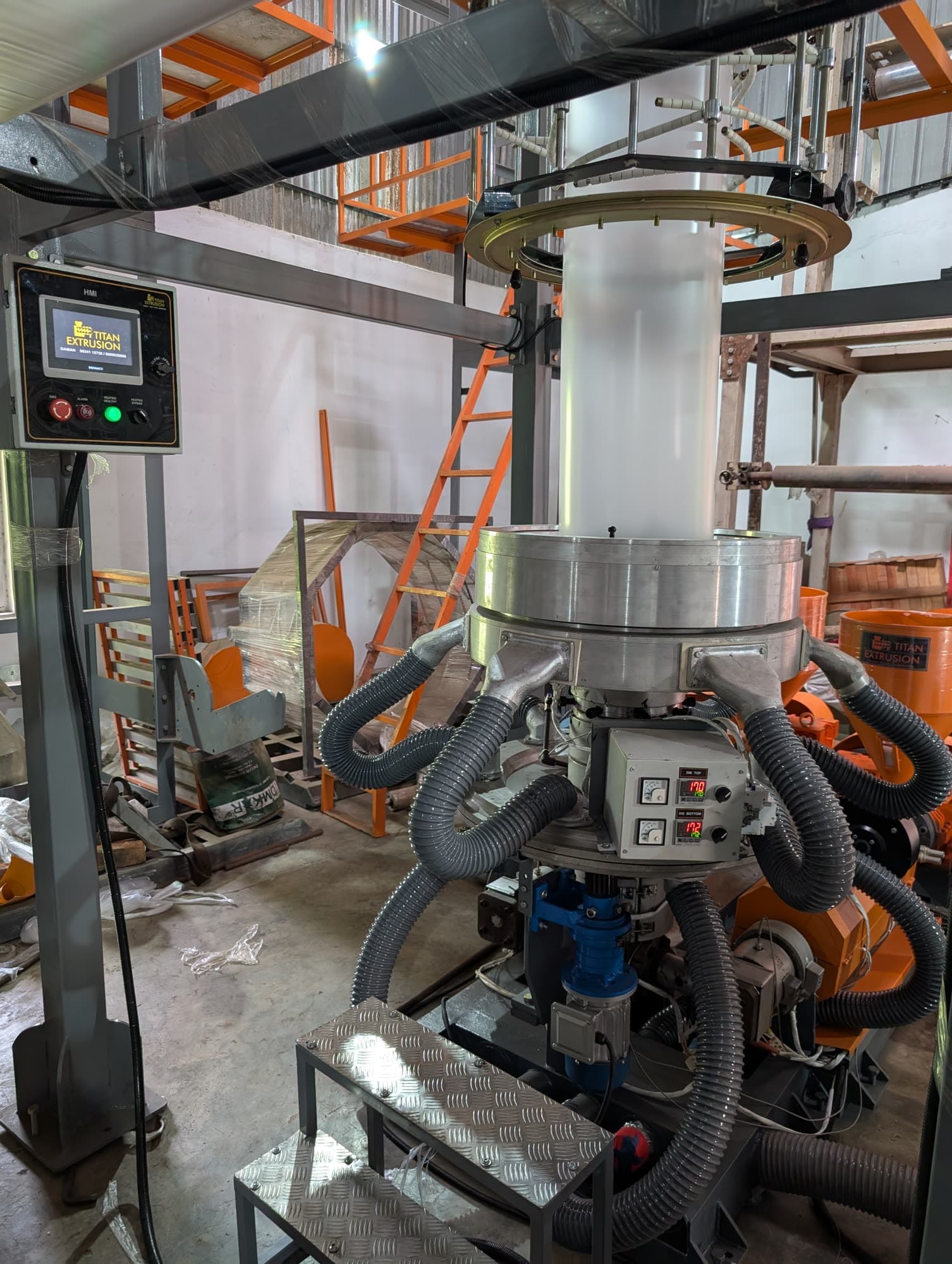

Three Layer ABA Blown Film
Overview
The Three Layer ABA extrusion machine is a cost-efficient solution that optimizes raw material usage while maintaining superior film performance. With a strong middle layer composed of recycled or lower-cost materials, it reduces production costs without compromising strength and durability. This technology ensures excellent barrier properties against moisture and gases, making it suitable for demanding applications such as agricultural films, heavy-duty sacks, laminated films, and construction wraps. Its energy-efficient design and material optimization make it a preferred choice for sustainable manufacturing practices.
- Models
- 3
- Max output
- 180kg
- Layflat range
- 750mm – 1500mm
Key Features
- High efficiency and optimized material usage
- Strong middle layer utilizing recycled materials for cost savings
- Optimized barrier properties for moisture and gas resistance
Applications
- Agricultural Films
- Heavy-Duty Sacks
- Laminated Films
- Construction Wraps
Specifications
Technical Specifications
| Specification | 35mm-45mm | 45mm-55mm | 55mm-65mm |
|---|---|---|---|
| Outer Screw Dia (mm) | 35mm | 45mm | 55mm |
| Middle Screw Dia (mm) | 45mm | 55mm | 65mm |
| Outer Main Motor (kw) | 5.5kw | 11kw | 22kw |
| Middle Main Motor (kw) | 11kw | 18.5kw | 30kw |
| Die Size | 75mm HM 150mm LLDPE | 90mm HM 250mm LLDPE | 150mm HM 350mm LLDPE |
| Output | 70kg | 120kg | 180kg |
| Thickness Gauge | 10 to 100 micron HM 20 to 100 micron LLDPE | 20 to 120 micron HM 25 to 200 micron LLDPE | 30 to 200 micron HM 25 to 200 micron LLDPE |
| Nip Size | 810mm | 1060mm | 1525mm |
| Layflat | 750mm | 1000mm | 1500mm |
